1. 貼片恒溫晶體振蕩器(OCXO)
2. 尺寸9.7×7.5×4.1 mm, 超小尺寸4腳貼片封裝
3. 頻率范圍從10MHz到40MHz。
4. 在-40oC至+85oC范圍內具有±20ppb的穩定性。
5. 第3層（整體±4.6ppm，包括10年老化時間。）
6. 電壓控制（電子頻率調整）可用。
7. 符合RoHS
8. 應用范圍：智能電池、數字開關、電信設備、合成器、測試和儀器儀表等產業行業上。
| Type /Item | NOC97BG (SMD OCXO) | Note | |
| Output Frequency | 10MHz~40MHz | ||
| Waveform | Rectangular/Clipped Sinewave | ||
| '1' Level |
Rectangular |
2.4V min. | |
| '0' Level | 0.4V max. | ||
| Duty Cycle | 45%~55% | ||
| Clipped Sinewave | 0.8Vp-p min. | ||
|
Load (Rectangular/Clipped Sine) |
15pF / 10Kohm//10pF | ||
| Spurious | -60dBc max. | ||
| Frequency Stability | Tolerance | ±20ppb | |
| vs. Temperature |
±5ppb~±50ppb |
||
| vs. Supply voltage |
±5ppb max. |
||
| vs. Load |
±5ppb max. |
||
| vs. Warm-up |
±0.1ppm max. |
||
| vs. aging | - | ||
| Daily | ±3.0ppb max. | ||
| Yearly |
±0.6ppm max. |
||
| 10 Years |
±3.0ppm max. |
||
| Phase Noise | @ 10Hz | -92dBc/Hz | |
|
@ 100Hz |
-120dBc/Hz |
||
|
@ 1KHz |
-140dBc/Hz |
||
|
@ 10KHz |
-150dBc/Hz |
||
| Electrical Frequency Adjustment | Range |
±5ppm max. |
|
| Control | 0~3.3V |
5.0V input available |
|
| Slope | Positive | ||
| Input Impedance | 100KΩ min. | ||
| Input Power | Voltage | 3.3V | 5.0V input available |
| Current | 350mA max. | ||
| Steady state | 0.4W max. | ||
| Operating Temperature | -20~+70℃, -40~+85℃ | ||
| Storage Temperature |
-40~+85℃ |
||

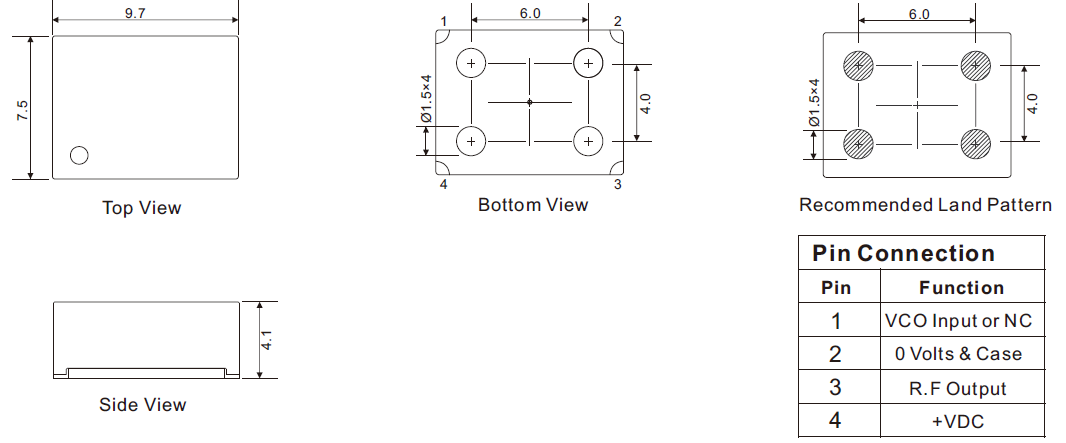

| Dimensions (L×W×H)(mm) | 9.7×7.5×4.1 | ||
